Flat panel detector type C-arm

Product Introduction

SHO-SFC5KW&SHO-SFC15KW

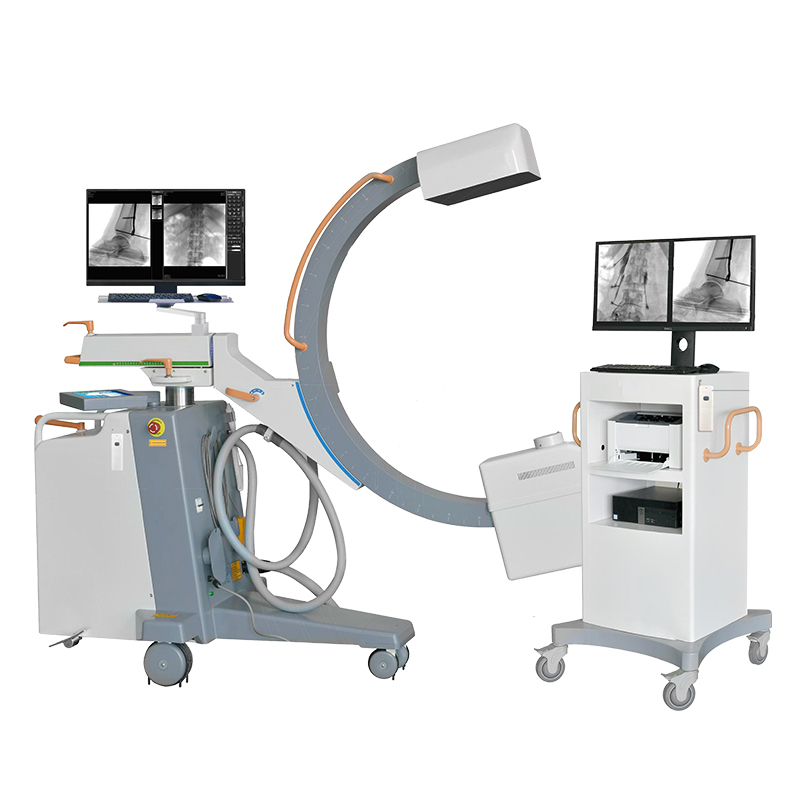

C-arm machine(FPD type)

Introduction
Powerful mobile C-arm machine designed for a wide range of applications in orthopedics, neurosurgery, pain management, and emergency room. With high frequency generator, it offers fine definition image with low dose. It brings to our users with unparalleled experience for operation when using the C-arm for orthopedic surgery and intervention operation. High performance with excellent image quality thanks to a-Si detector. The 21×21cm image sensor has direct deposition CsI , which provides excellent low-dose imaging at frame rates up to 30 fps. When integrated into mobile C-arm fluoroscopic X-ray system, it is ideal for vascular or surgical applications.

The advantages of the split C-arm machine:
Flexibility and operability:
The design of the split C-arm machine allows the equipment to be operated flexibly in different surgical environments and adapt to various complex surgical needs. The workstation is equipped with a medical display screen and exposure foot brake, so that doctors can operate the equipment indoors and outdoors, improving work efficiency
Safety and stability:
The split structure facilitates the operation of the device compartment, which can avoid the surgeon from absorbing unnecessary radiation during operation and ensure safety during the operation
Versatility and scope of application:
The split C-arm machine is not only suitable for clinical surgery, but also suitable for teaching and research and other scenarios to meet diverse needs 1Ease of maintenance and upgrades: Thanks to the split design, equipment maintenance and upgrades are easier and the impact of equipment failures is reduced




Features
◆High -frequency generator emits high-quality and hard x-rays with strong penetrability.
◆21cm*21cm flat panel detector, which has bigger image size than image intensifier.
◆Amorphous silicon flat panel makes the surgery more accurate for the clinical operation due to high density resolution and spatial resolution.
◆High stability oil-cooled heat-resistant combined tube, support long-time image acquisition in surgery, satisfy the requirement of long-time operation.
◆Two 19’’ Dell brand monitors project real-time video and reference images simultaneously for quicker diagnosis and inference .
◆Microcomputer control system with self-diagnostic function and automatic protection.
◆Modular design offers error codes and reset button.
◆Double CPU control improves the stability and safety of the equipment.
◆Large opening design provides larger free diagnosis spaces, and maximizes the efficiency of surgery environment.
◆Hand switch, foot switch and remote control make sure that you could do exposure inside and outside the operating theatre.
◆PACS connectivity with DICOM 3.0 is convenient to send, receive and print images..

Specifications
Ambient Conditions

Ambient temperature	10℃～40℃
Relative humidity	30％～75％
Atmospheric	70～106kPa


X-ray Generator

Model	SHOC-5KW	SHOC-15KW
Output power	5KW	15KW
Current of fluoroscopy	0.3-6.3mA	0.3-6.3mA
Current of radiography	0.1-100mA	0.5-150mA
Pulsed mA	32mA	32mA
Voltage	40kV-125kV	40kV-125kV
mAs range	0.2-100mAs	0.2-100mAs
ms range	10-1600ms	10-1600ms


X-ray Tube

Anode type	5kw is Stationary Anode tube, 15kw is Rotating Anode tube
Focal Spot value	0.3mm /0.6mm
Rotating anode speed	2800rmp
Anode heat storage	300KHU
Housing Heat Storage Capacity	1200KHU



Flat-panel Detector(Iray brand)

Size	21*21cm
Detector Technology	Amorphous Silicon
Scintillator	CsI
Image resolution	2.5lp/mm
Frame rate	MAX 30frames/sec
Active pixels	1024*1024 pixels
A/D conversion	16 bit
Pixel Pitch	205 μm
Faster image capture speed	The image will be displayed on the monitors in 0.8S after exposure.


Grid

Brand	JPI
Ratios	10:1
Density	60l/cm
SID	100cm


C-arm Unit

SID	1000mm
Free space(Tube to I.I)	820mm
Arc depth	640mm
Vertical movement	0-400mm(Electric)
Horizontal movement	0-200mm(Manual)
Planning movement	±15°(Manual)
Orbital movement	-30°-+90°(Manual)
C-arc rotation	±180°


Workstation
Size: 19 inches Screen(2pcs Dell brand)
resolution: 1280x1024 pixels
Vertical viewing angle: 178°
Average brightness: 250cd/m^2
Dynamic contrast ratio: 4000000:1
Horizontal viewing angle: 178°
Black and white response time:5 ms
