Double columns floor mounted X-ray machine

Product Introduction

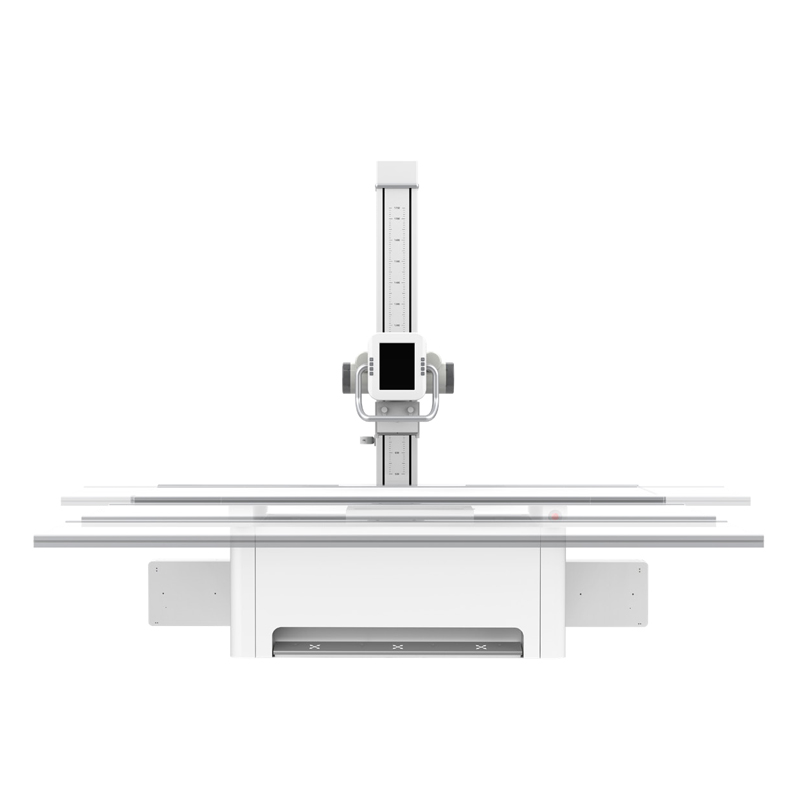

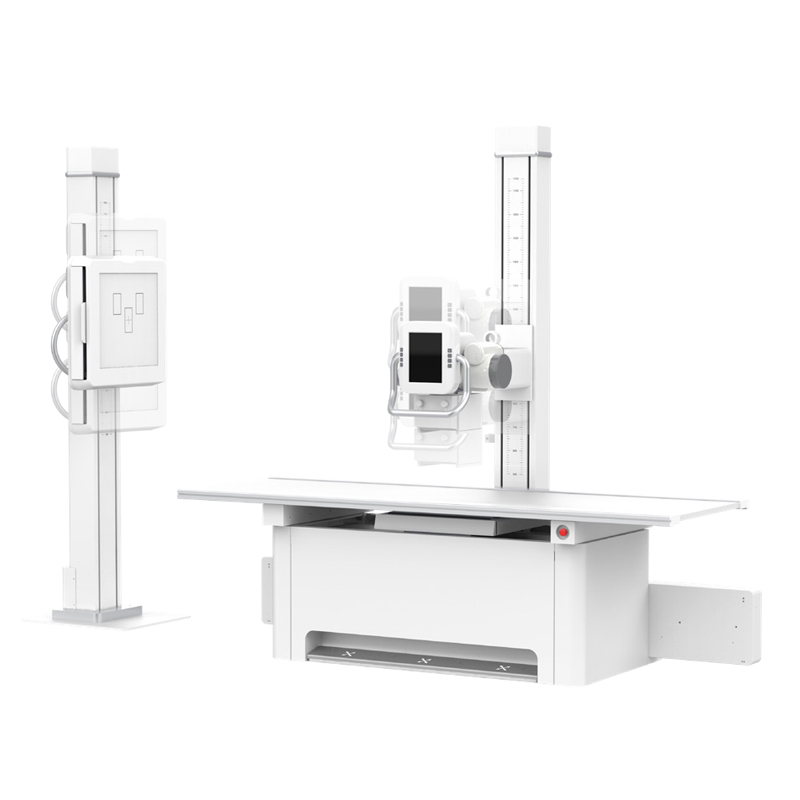

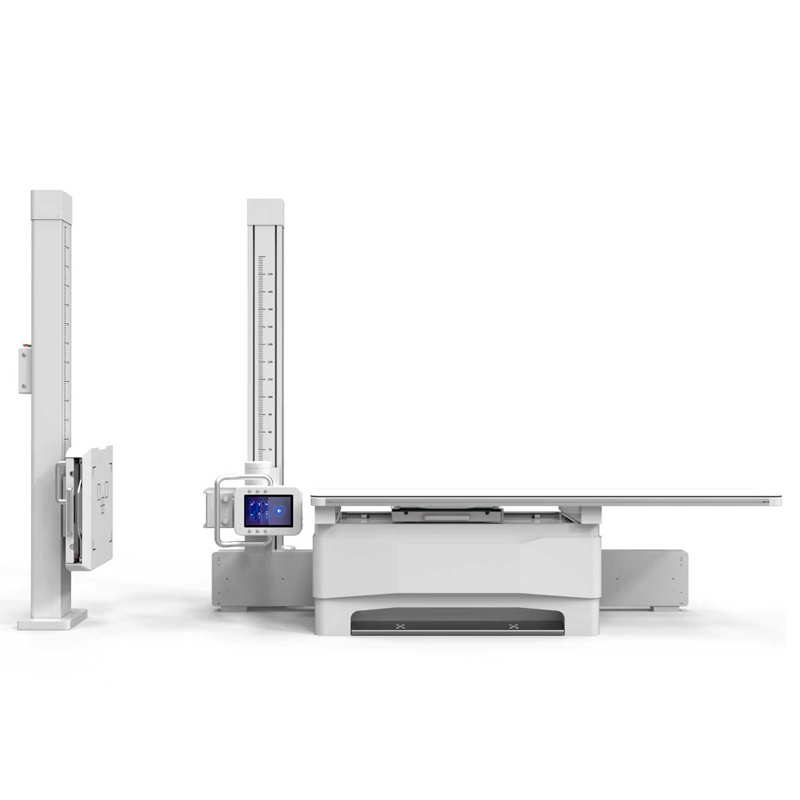

SHO-DDX01 Double columns Floor-mounted Digital Radiography System















Introduction
This high-end model can achieve electric correspondence between the X-ray tube and flat panel detector, and can also be equipped with optional AEC and DAP functions, and the photography table also can be upgraded to 6 ways floating table.

This floor-mounted Digital X-ray Radiography System adopts floor-mounted table and wall stands. Its smart design, flexible movement, easy operation and high working efficiency provide more imaging positions. It is a high-end digital radiography device with wide range of applications, which could perform routine imaging of human head, chest, abdomen, lumbar vertebra and limbs with PA, LAT and clinostatism in hospitals at all levels.

Features
◆Sophisticated technology, high rotating speed, good heat dissipation, high heat capacity, suitable for long-time clinical examination, long product life.

◆High frequency generator with high X-ray inverse frequency, large power and good X-ray quality.

◆Intelligence high voltage control system with various APR.

◆New generation a-Si Csl flat panel detector with high conversion rate achieves digital image acquisition with low dose.

◆High standard digital image processing system provides more post-processing and meets clinical needs.

Specifications
Ambient Conditions

Ambient temperature	10℃～40℃
Relative humidity	30％～75％
Atmospheric	70～106kPa
Main head	10.4 inch touch screen control panel


X-ray Generator

Model	SHO-DDX01 Series
Output power			40kw	50kw	65kw
Current			10-500mA	10-630mA	10-800mA
Voltage			40-125kV	40-150kV	40-150kV
mAs			0.1-400mAs	0.1-630mAs	0.1-630mAs
Exposure time	0.002~6.3S
APR program	Equipped
Intelligent protection system	It has self-protection system. It will give an alarm and check fault code.






X-ray Tube

Model	SHO-DDX01 Series
Output power			40kw	50kw	65kw
Anode type			Rotating Anode	Rotating Anode	Rotating Anode
Revolving speed of anode			50HZ: 2800rpm 60HZ: 3000rpm	50HZ: 2800rpm 60HZ: 3200rpm	50HZ: 2800rpm 60HZ: 3200rpm
Focus size			1.0/2.0	0.6/1.2	0.6/1.2
Anode heat storage capacity			150KHU	300KHU	400KHU
Maximum Anode Heat Dissipation			475W	750W	1000W
Housing heat storage capacity			900kJ	900kJ	1000kJ
X-ray tube Rotation angel			±180°	±180°	±180°



X-ray detector(Wired flat Panel Detector)

Type	Amorphous Silicon
Scintillator	Cesium Iodide
Active Area	17x17Inch(43cm*43cm)
Active Pixel	3072*3072
Pixel Pitch	139um
A/D Conversion	16bits
DQE	≧70%
Spatial Resolution	36Lp/cm
Acquisition time	≤2S







Collimator

Type	Manual Collimator
Max. Window	440mm×440mm（SID=100cm）
Lamp	AC/DC24V、5W
Lamp timer	Automatic illumination with timer for lamp(30S)
Inherent filtration	1.0mmAl
Illuminant	LED


Grid

Densities	40LP/CM
Ratios	10:1
Size	18”×18”
Focal distance	100cm(Radiography table), 180cm(Bucky stand)


Photography table

Type	Radiography Table
Tabletop size	2300mm×800mmX60mm
load-bearing	300KG
Floating front and back	740mm±3%
Floating left and right	210mm±3%
FPD tray movement range	650mm±3%




Column stand movement

Tube stand

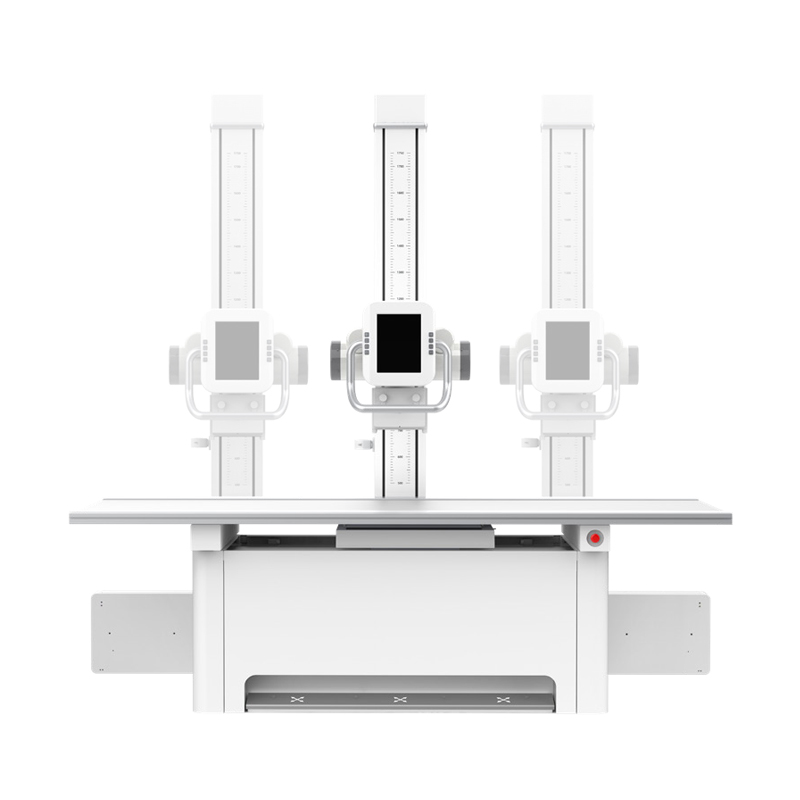

Up-down movement（to photography table）	1500mm±3%
Stand left-right movement	1900mm±3%
Rotational angles of stand	+180°～-180°
Backy stand
Detector vertical movement range (distance between detector center and ground)	1500mm±3%
The lowest point of the detector center relative to the ground	≤46cm
Automatic tracking function	Yes, electric correspondence between the X-ray tube and flat panel detector



Workstation

Monitor	23’’ LCD Dell brand
CPU	≥2.8GHz
Memory	≥4GB
HDD	≥1TB
DICOM3.0	Query for integration with any PACS
Functions	Import/export function
	Image info
	Management of patient info
	Post processing
	Measurement etc.



Console

Control room console	10.4 inch LCD color touch screen console for exposure parameter setting and exposure
Controller	Wired controller for electric movement
